PU-PVC COATING LINE - I

PU-PVC COATING LINE

PU-PVC COATING LINE - I

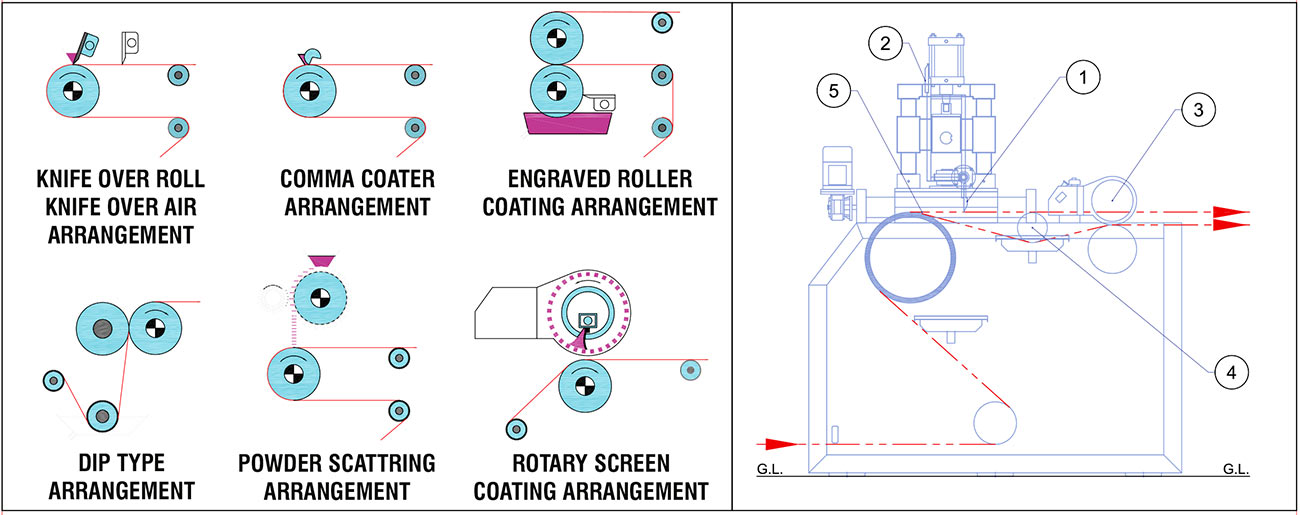

Technical Information

  • Roller face : 1600 - 4400mm
  • Versatile and modular coating system to produce a wide range of products for tarpaulins, apparels, home textiles, floor coverings, rugs, artificial leather, blinds, pigment coatings, protective cloth, curtains, parachute fabrics, umbrella, sports wear, automotive application.
  • Motorised adjustment of knife in vertical position - between knife and roller.
  • Motorised angular adjustment of knife.
  • Motorised adjustment of knife on horizontal position.
  • Electronic scales for all axis. display of all setting / positions on digital displays.
  • Micro - adjustment gears for gap setting.
  • Pneumatic lifting for entire blade assembly synchronised with seam detection.
  • Positive control for left and right side.
  • Screen Printing single screen with pneumatic squeezing system.
  • Engraving roller based coating systems.
  • Application system by pipes, try or traversing type applicator with auto dosing system with pump.
  • Foam generators with foam feeding system can be provided.
  • Embossing / glossy Finish / Matt Finish device Heated chrome plated roller with hydraulic pressure to a rubber roller to achieve desired final finish on the coated material.
